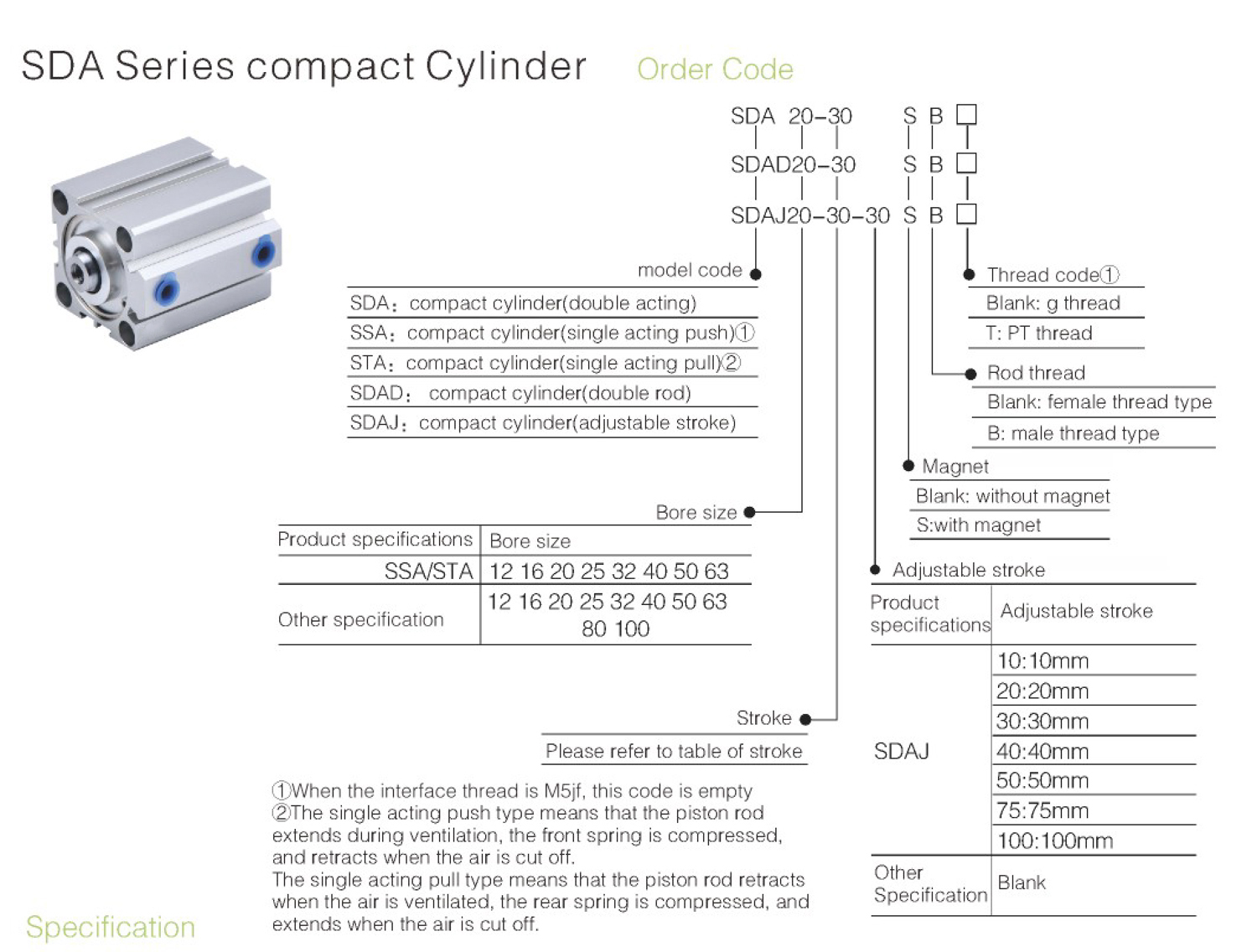

SDA Series Compact Cylinder

Inquire Now Next Product
Share
Description

Product Feature

1、Manufactured by our enterprise;
2、 Riveted structure is adopted to connect the cylinder body and back cover, and piston andpiston rod to make it compact and reliable,
3、 The inner diameter of the body is treated with rolling followed by the treatment of hardanodizing, forming an excellent abrasion resistance and durability;
4、The seal of piston adopts heterogeneous two-way seal structure. lt has compactdimension and the function of oil reservation.
5、Compact structure can effectively save installation space,
6、 There are magnetic switch slots around the cylinder body, which is convenient to installsensor switch.
7、Mounting accessories with various specifications are optional.
