5V Series Solenoid Valve (5/2 Way, 5/3 Way)

 Product Features

1. Low Power Consumption And High Operating Frequency; No Need To Lubricate With Oil;

2. Terminal Type Power Connection Method, Centralized Internal Exhaust Of Pilot Airflow, Suitable For Workplaces With Special Requirements Such As Pollution-Free Operation;

3. Sliding Column Structure, Good Sealing And Sensitive Response; There Are Multiple Standard Voltage Levels Available For Selection;

4. The Three Position Solenoid Valve Has Three Central Functions To Choose From; The Dual Head Two Position Solenoid Valve Has a Memory Function;

5. The Inner Hole Is Processed With Special Technology, With Low Friction Resistance, Low Starting Air Pressure, And Long Service Life;

6. Can Be Integrated With The Base Valve Group To Save Installation Space; Equipped With a Manual Device For Easy Installation And Debugging.

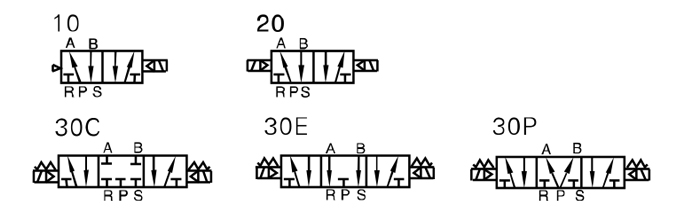

 Symbol

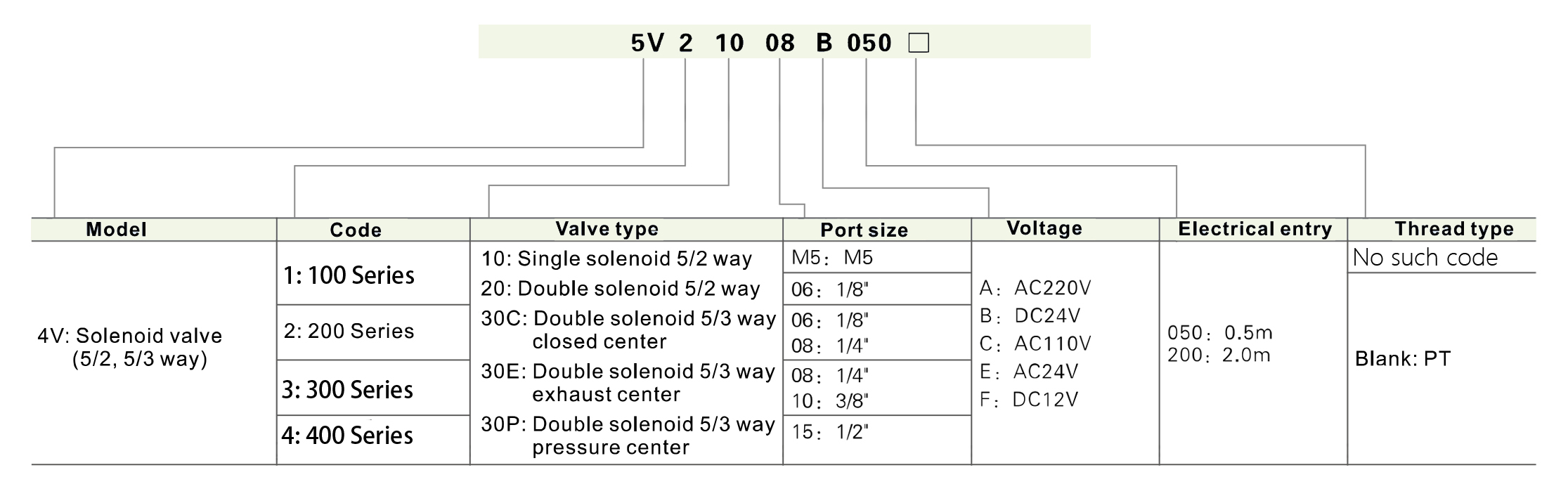

 Ordering Code
