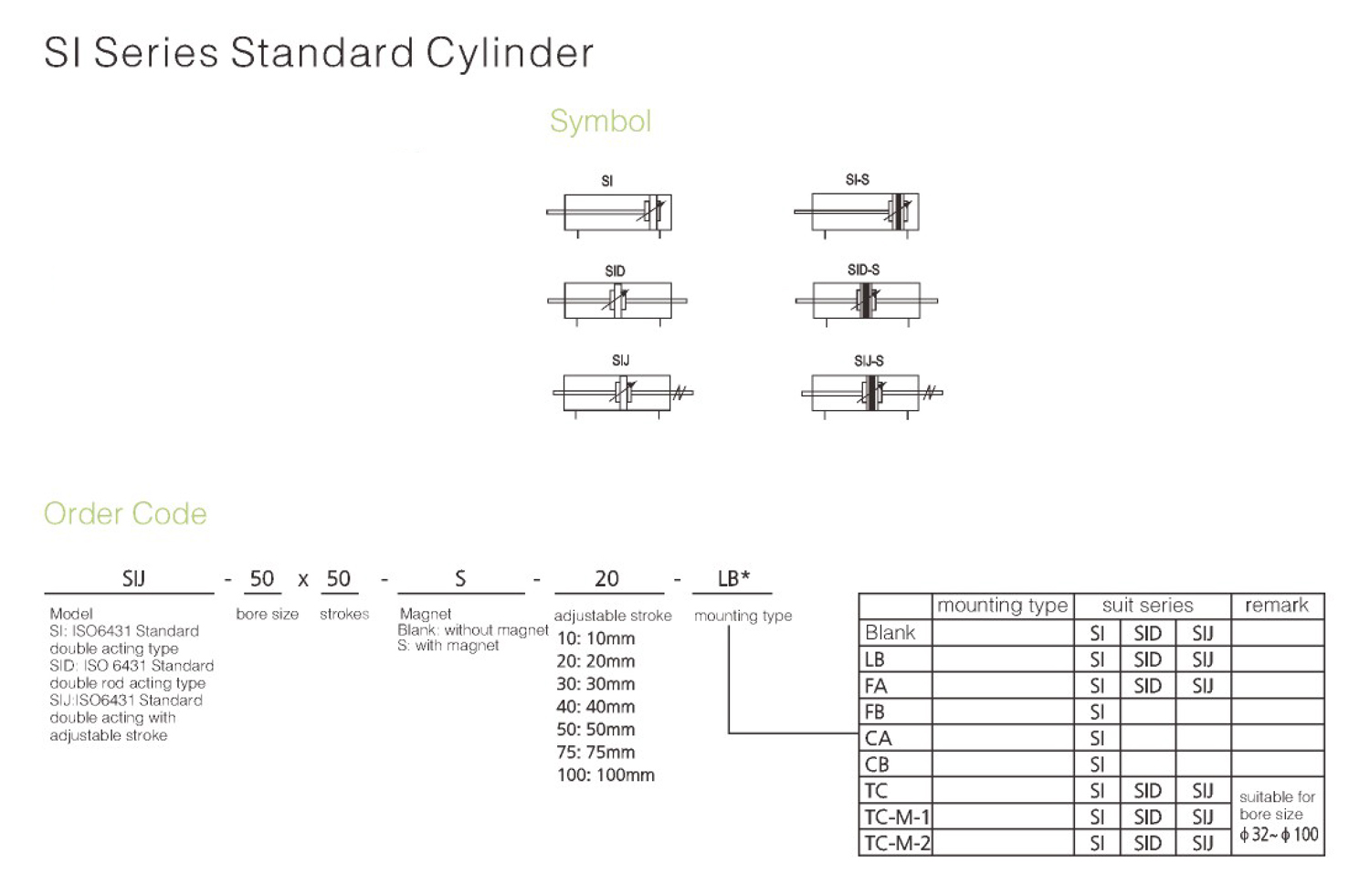

SI Series Standard Cylinder

Product Feature

1 .Standard cylinder manufactured by our enterprise.

2.The seal of piston adopts heterogeneous two way seal structure. lt's dimension is tight andit has the function of grease reservation.

3.lt is tie rod cylinder. The cylinder barrel and front/rear cap is jointed by tie rods with highreliability.

5.The buffer adjustment of cylinder is smooth and steady.

6.Cylinders and mounting accessories with several specifications are optional.

7.The seal material with high temperature resistance is adopted to guarantee the normaloperation of cylinder at 65°c.
